230VAC Input Voltage Air Ventilation Blowers , Ceiling Fan Motor Replacement
AC Power Source EC Motor
BIG Advantages:
Low Noise: Negligible noise comparing to Brushed DC Motors
Durable Life: Long lifes over 20000hrs.
Energy Saving: comparing to PSC motors and induction motors over 30% energy saving
Direct Input: Connect with 230VAC Power Source directly
Product Information:
Model: W10825-230
Voltage: 230VAC/50Hz
Markets Covered: Middle East ,Southeast Aisa and Middle Asia
Typical Specification:
| Input Voltage | 230VAC |
| Speeds Adjustable | 5 Speeds optional |
| Output Power | 55W |

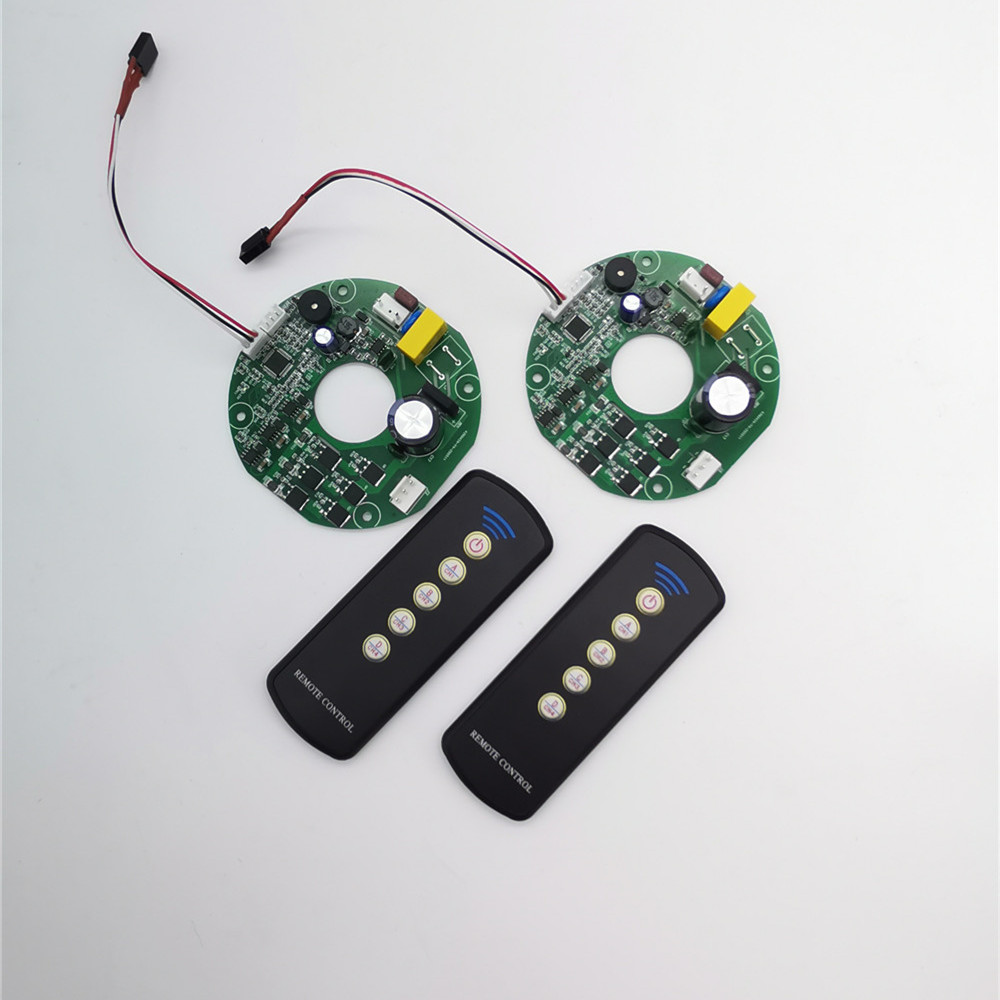

| Control Method | Remote Control and Manual Operation |
| Housing | Die Casted |
| Shaft | SUS304/#45 |
| Bearing | Ball Bearing |
| Insulation | Class F |
| Shaft Diameter | 12mm |
| Standard | UL Standard |
Performance @230VAC/50Hz Input Power Source:
| Model | Speed Switch | Performance | ||||
| Voltage(V) | Current(A) | Power(W) | Speed(RPM) | |||
| Ceiling Fan Motor 230VAC Version | 1st. Speed | 230VAC | 0.204A | 21.1W | 234RPM | |
| 2nd. Speed | 230VAC | 0.276A | 30W | 265RPM | ||
| 3rd Speed | 230VAC | 0.35A | 34.7W | 293RPM | ||
| 4th. Speed | 230VAC | 0.407A | 47.7W | 315.6RPM | ||
| 5th. Speed | 230VAC | 0.456A | 54.3W | 327RPM | ||
FAQ
1. What are your prices?
Our prices are subject to specification depending on technical requirements. We will make offer we clearly understand your working condition and technical requirements.
2.Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. Normally 1000PCS, however we also accept the custom made order with smaller quantity with higher expense.
3.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
4.What is the average lead time?
For samples, the lead time is about 14 days. For mass production, the lead time is 30~45 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
5.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance before shipment.
|
|
