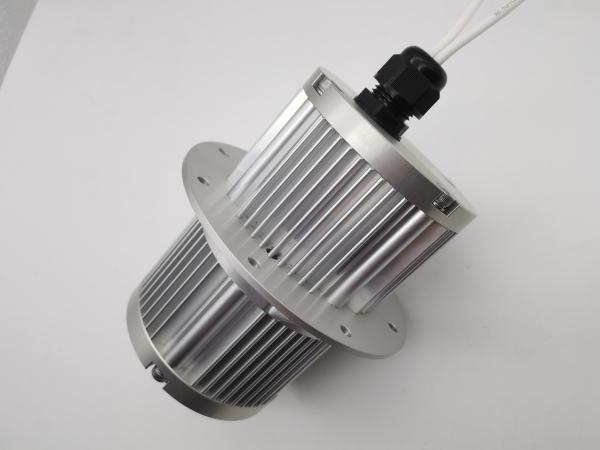

Industrial Durable BLDC Fan Motor-W89127

This W89 series brushless DC motor(Dia. 89mm), is designed for industrial application such as helicopters, speedboad,commercial air curtains,and other heavy duty blowers which requires IP68 standards.

The significant feature of this motor is it can be used in very harsh environment in high temperature, high humid and vibration circumstances.

Product Key Features:

*Industrial fan motor 1hp power

*Controller embedded

*Water proof feature IP68

*Fins for heat radiation

*Outdoor harsh environment application

*Oxidization Surface treatment

Here is the simple comparisons between AC motor fans and EC motor fans:

Based on above comparisons, it is easier to make decision to upgrade your products into EC motors, which would significantly increase your products competence, spending a little more in initial investment, but a definitely BIG SAVING in future using.

General Specification:

• Voltage Range: 24V/36V/48VDC
• Output Power: 200~1500watts
• Duty: S1,
• Speed Range: up to 4,000 rpm
• Operational Temperature: -20°C to +60°C
• Insulation Grade: Class F, Class H
• Bearing Type: sleeve bearings, ball bearings optional.
• Optional shaft material: #45 Steel, Stainless Steel,
• Housing Type: Air Ventilated, Plastic Housing
• Rotor feature: Inner rotor brushless motor
• Certification: UL, CSA, ETL,CE

Specification:

Application:

Industrial Blowers,aircraft cooling system,heavy duty air ventilators, HVAC, air coolers and harsh environment etc.

Dimension:

Typical Performance:

Retek offers a complete line of technologically advanced solutions. Our engineers are mandated to focus their efforts on developing different types of energy efficient electric motors and motion components. New motion applications are also constantly being developed in conjunction with the customers to ensure perfect compatibility with their products.

Unlike other motor suppliers, Retek engineering system prevents the selling of our motors and components by catalogue as every model is customized for our customers. The customers are assured that every component they receive from Retek is designed with their exact specifications in mind. Our total solutions are a combination of our innovation and close working partnership with our customers and suppliers.

Retek business consists of three platforms：Motors,Die-Casting and CNC manufacturing and wire harne with three manufacturing sites. Retek motors being supplied for residential fans, vents, boats,air plane,medical facilities,laboratory facilities,trucks and other automotive machines. Retek wire harness applied for medical facilities, automobile, and household appliances.

Why Choose us

1. Same supply chains as other big names.

2. Same supply chains but lower overheads provide most cost-effective advantages.

3. Engineering team over 16 years experience hired from by public companies.

4. One-Stop solution from manufacturing to innovative engineering.

5. Quick turnaround within 24 hours.

6. Over 30% growth every year in the past 5 years.

Welcome to send us RFQ for quote, it is believed you will find best cost-effective products and service here in Retek!
