Brand Name : | Retek |
Model Number : | W3650 |
Certification : | CCC,UL |
Price : | Negotiable |
Payment Terms : | T/T, Western Union |
Supply Ability : | 10000PCS/Month |
Delivery Time : | 14days |
36mm*50mm:Brushless DC motor W3650 for White Goods, Small Appliance, Fanner, Coffee Machine, Milk Tea Machine
Typical Application:
Hair Dryer and Medical Apparatus and Medical Stirrer, Vibrator
Drawing:
Typical Performance:
Voltage | Noload | At Max. Efficiency | Stall | |||||||
Model | Operating Range(V) | Nominal(V) | Speed(RPM) | Current(A) | Speed(RPM) | Current(A) | Torque(g.cm) | Output(W) | EFF(%) | Torque(g.cm) |
W3650A | 9.0~14.0 | 12.0V constant | 5300 | 0.46 | 4302 | 1.98 | 341.5 | 15.1 | 63.3 | 1814.9 |
W3650B | 19.0~26.0 | 24.0V constant | 13800 | 0.32 | 11680 | 1.76 | 265.3 | 31.8 | 74.9 | 1730.9 |

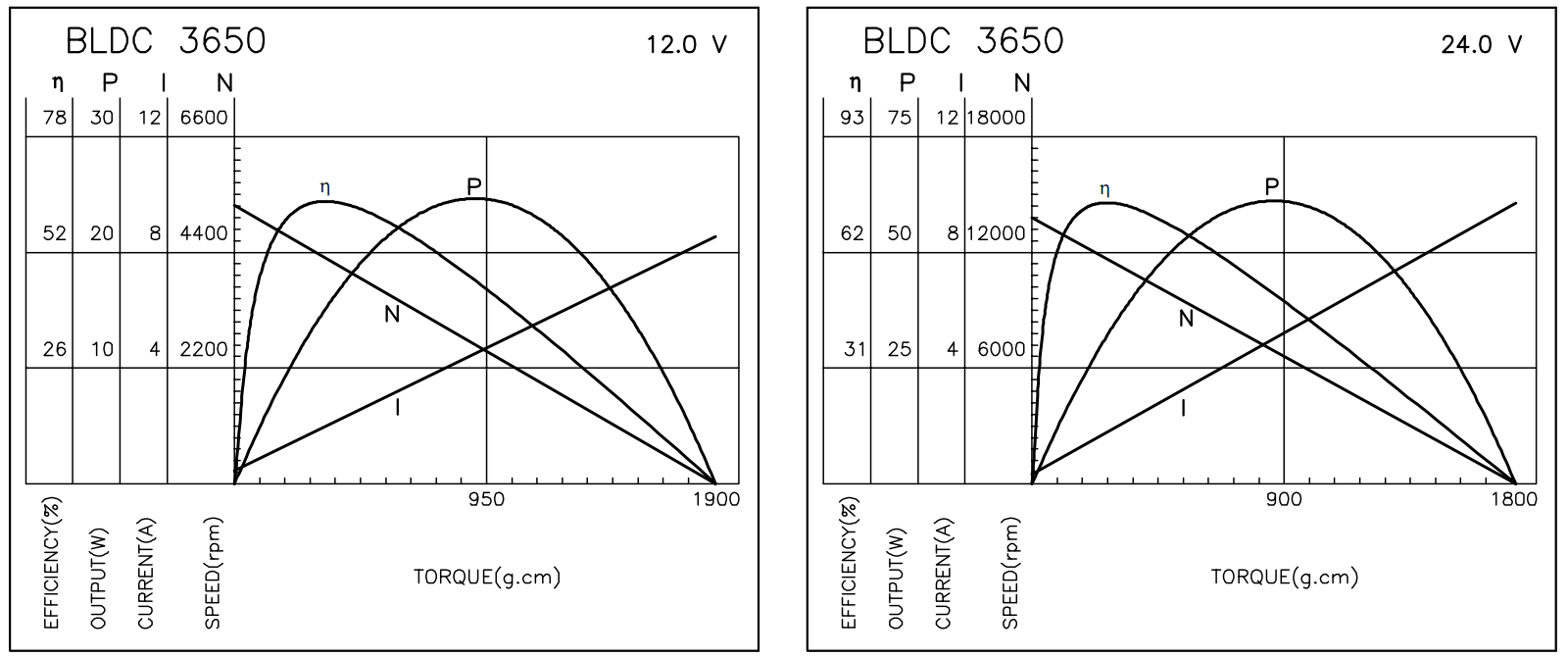

Curve:
For more details, please feel free to contact us for full specification.
![]() |
