High Efficiency 40W Air Pump Motor Long Lifespan For Endurable Environments 12V-230V DC Motor​

Robust Suction Pump Motor,It is durable for harsh vibration working condition with S1 working duty, stainless steel shaft, and anodizing surface treatment with 1000 hours long life requirement requirements.

Typical Application:

Gearmotor, linear actuator,power tool, spreader,auger,automations and so on.

The motors are higher efficiency than others and good drop-in replacement for other expensive big branded factories motors.

Features:

Low Noise, Long lifespan, Cost less and Save more for your benefits.

Descriptions:

1.1 Testing condition
1.1.1) Rated voltage : 12VDC
1.1.2) Ambient Temperature : Room Temperature (20-25℃)
1.1.3) Humidity : 60%RH
1.1.4) Motor position : Horizontal
1.1.5) Power source : Regulated DC power supply

1.2 At no load condtion performance
1.2.1) Speed : 4150±498 rpm
1.2.2) Current : 0.4 Amp Max

1.3 At rated torque performance
1.3.1) Torque : 0.0587N.m
1.3.2) Speed : 3250±390 rpm
1.3.3) Current : 2.5 Amp Max

1.4 At stall condition performance as below:
1.4.1) Torque : 0.22N.m
1.4.2) Current : 15.7 Amp Max
1.5 High voltage : 600 V AC/1sec/5mA,between terminal and shaft
1.6 Insulation resistance : ≥1MΩ(DC500V).

Typical Specification:

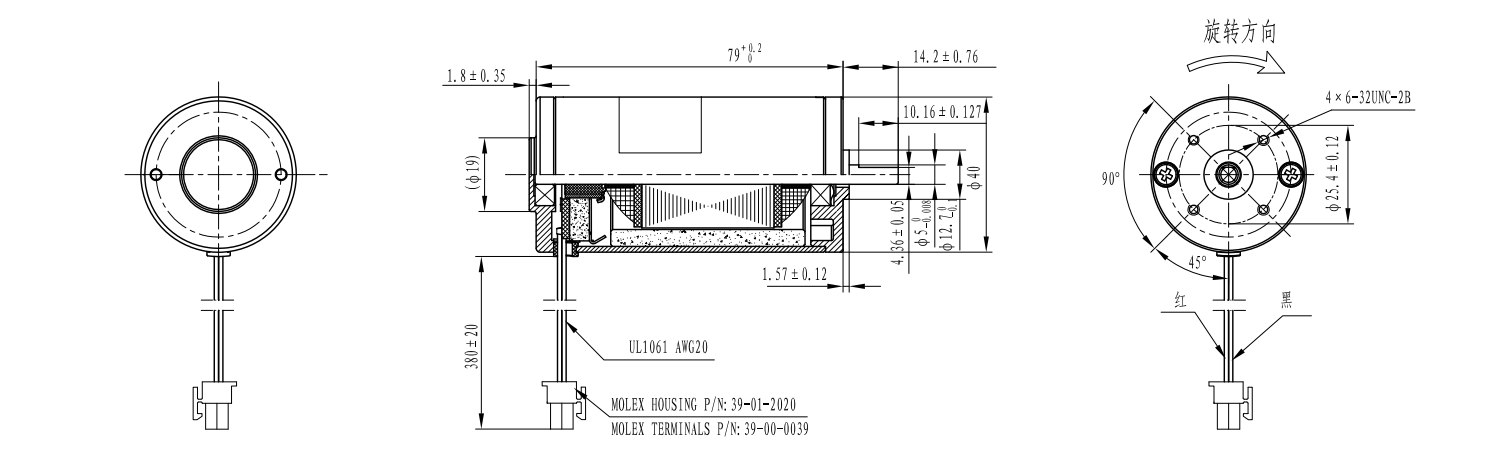

Drawing:

Typical Performances:

Retek offers a complete line of technologically advanced solutions. Our engineers are mandated to focus their efforts on developing different types of energy efficient electric motors and motion components. New motion applications are also constantly being developed in conjunction with the customers to ensure perfect compatibility with their products.

Unlike other motor suppliers, Retek engineering system prevents the selling of our motors and components by catalogue as every model is customized for our customers. The customers are assured that every component they receive from Retek is designed with their exact specifications in mind. Our total solutions are a combination of our innovation and close working partnership with our customers and suppliers.

Retek business consists of three platforms：Motors,Die-Casting and CNC manufacturing and wire harne with three manufacturing sites. Retek motors being supplied for residential fans, vents, boats,air plane,medical facilities,laboratory facilities,trucks and other automotive machines. Retek wire harness applied for medical facilities, automobile, and household appliances.

Why Choose us

1. Same supply chains as other big names.

2. Same supply chains but lower overheads provide most cost-effective advantages.

3. Engineering team over 16 years experience hired from by public companies.

4. One-Stop solution from manufacturing to innovative engineering.

5. Quick turnaround within 24 hours.

6. Over 30% growth every year in the past 5 years.

Welcome to send us RFQ for quote, it is believed you will find best cost-effective products and service here in Retek!
