D3175PLG: DC Gearmotors for Automatic Doors,Automobiles,Actuators and Automated Devices.
Typical Application:
Gearmotor, linear actuator,power tool,automated devices
Features:
Low Noise, Long lifespan, Cost less and Save more for your benefits.

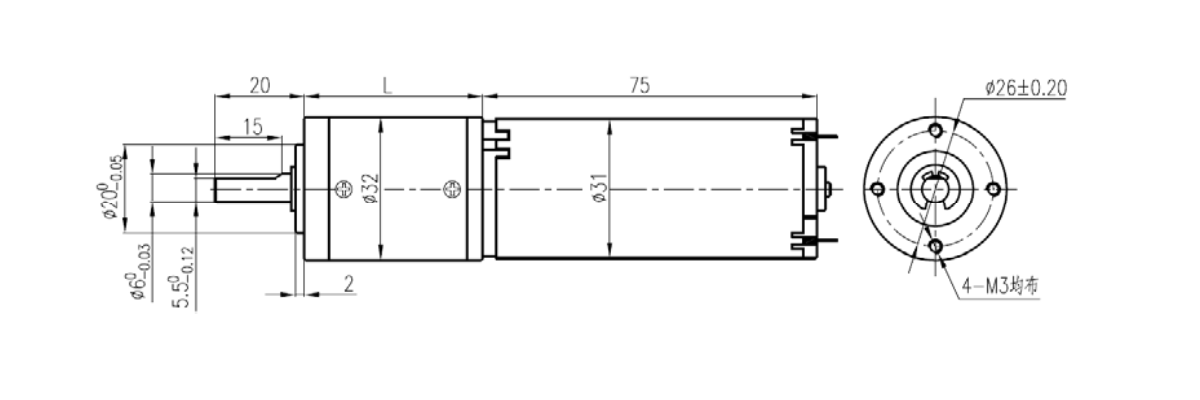

Drawing:
Motor Technical Data:
| TYPE | Rated voltage VDC | No-load speed r/min | No-load current mA | Rated speed r/min | Rated torque m.Nm | Output power W | Rated current mA | Stall torque m.Nm | Stall current A |
| D3175-2460 | 24 | 6000 | 150 | 4800 | 50 | 24.6 | 1500 | ||
| D3175-2480 | 24 | 8000 | 200 | 6700 | 50 | 34.3 | 2000 | 296 | 10 |
Gear motor Technical Data:
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 |
| (L) Length(mm) | 31 | 31 | 40.1 | 40.1 | 40.1 | 49 | 49 | 49 | 49 | 57.9 |
| No-load speed (r/min) | 1617 | 1158 | 429 | 316 | 222 | 118 | 85 | 60 | 43 | 32 |
| Rated speed (r/min) | 1294 | 927 | 343 | 253 | 178 | 94 | 68 | 52 | 39 | 28 |
| Rated torque (mN.m) | 0.17 | 0.23 | 0.57 | 0.77 | 1.1 | 1.8 | 2.5 | 2.5 | 2.5 | 3 |
| mN.m Max. permissible load in a short time | 1 | 1 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 |
