| Brand Name : | Retek |
| Model Number : | D2238PLG |
| Certification : | CCC,UL, Reach, RoHS, CE |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 20000PCS/Month |
| Delivery Time : | 14days |

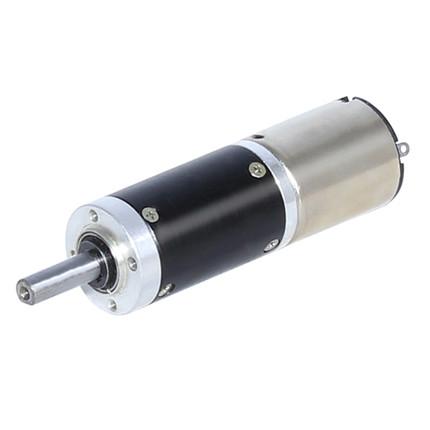

D2238PLG: DC Gearmotors for toys, home appliances and hand tools
Typical Application:
Gearmotor, linear actuator,power tool,automatic doors
Features:
Low Noise, Long lifespan, Cost less and Save more for your benefits.

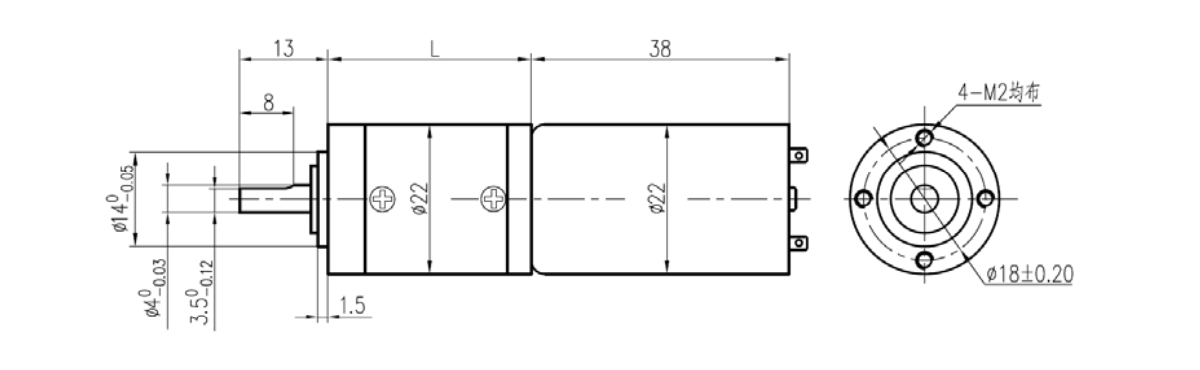

Drawing:
Motor Technical Data:
| TYPE | Rated voltage VDC | No-load speed r/min | No-load current mA | Rated speed r/min | Rated torque mN.m | Output power W | Rated current mA | Stall torque mN.m | Stall current A |
| D2238-1230 | 12 | 3000 | 30 | 2350 | 3 | 0.7 | 110 | 11 | 0.35 |
| D2238-1245 | 12 | 4500 | 35 | 3570 | 3 | 1.1 | 145 | 15.5 | 0.65 |
| D2238-1260 | 12 | 6000 | 50 | 5150 | 3 | 1.6 | 195 | 19.5 | 1.1 |
Gear motor Technical Data:
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| (L) Length(mm) | 24.4 | 24.4 | 26.8 | 26.8 | 26.8 | 31.7 | 31.7 | 31.7 | 31.7 | 36.6 | 36.6 | 36.6 | 36.6 | 36.6 |
| No-load speed (r/min) | 810 | 570 | 210 | 150 | 110 | 55 | 40 | 30 | 20 | 15 | 11 | 8 | 5 | 4 |
| Rated speed (r/min) | 630 | 440 | 160 | 120 | 85 | 45 | 30 | 23 | 16 | 12 | 8.5 | 6 | 4.5 | 3 |
| Rated torque (mN.m) | 0.01 | 0.014 | 0.037 | 0.051 | 0.072 | 0.13 | 0.18 | 0.25 | 0.35 | 0.45 | 0.5 | 0.5 | 0.5 | 0.5 |
| mN.m Max. permissible load in a short time | 0.15 | 0.15 | 0.6 | 0.6 | 0.6 | 1.2 | 1.2 | 1.2 | 1.2 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
For custom made, please feel free to contact us today.
|
|
