Compact Structure Automotive DC Motors Low Vibration In Bill Counter Machine
Product introduction:
This product is a compact high efficient brushed DC motor, we offer two options of magnets: Ferrite and NdFeB. If choose magnet made by NdFeB(Neodymium Ferrum Boron) , it would provide much more robust power than others available motors in the market.
Typical Application:
Gearmotor, linear actuator,power tool, spreader,auger,automations and so on.
The motors are higher efficiency than others and good drop-in replacement for other expensive big branded factories motors.
Features:
Low Noise, Long lifespan, Cost less and Save more for your benefits.
Performances:
| Voltage Range: | 12VDC,24VDC,130VDC,162VDC |
| Output Power | 15~100 watts |
| Duty | S1, S2 |
| Speed Range | up to 10,000 rpm |
| Operational Temperature: | -20°C to +40°C |
| Bearing Type | durable brand ball bearings |
| Insulation Grade | Class B, Class F, Class H |
| Optional shaft material | #45 Steel, Stainless Steel, Cr40 |
| Optional housing surface treatment | Powder Coated, Electroplating,Anodizing |
| Housing Type | Air Ventilated, Water Proof IP68. |
| Slot Feature | Skew Slots,Straight Slots |
| EMC/EMI Performance | pass all EMC and EMI testing. |

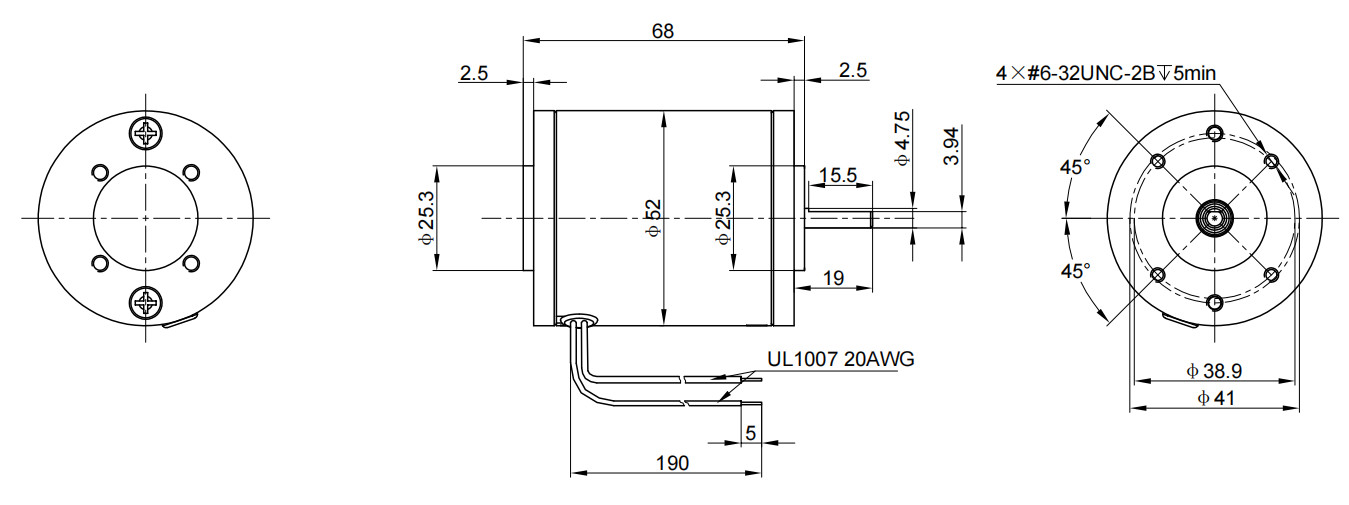

Outline Drawing:

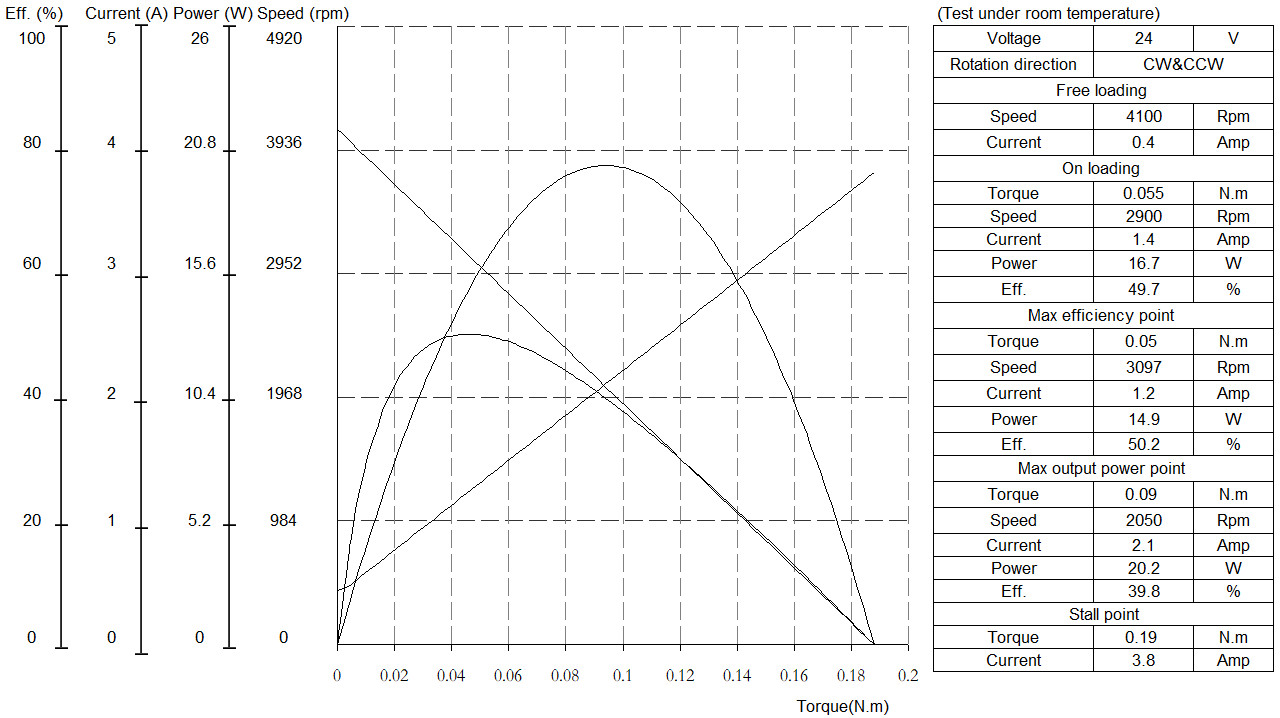

Curve:
|
|
