| Brand Name : | Retek |
| Model Number : | D82138A |
| Supply Ability : | 10000PCS/Month |
| Delivery Time : | 14days |
| Certification : | CCC,UL |
| Price : | Negotiable |
The motor also adopts the skewed slots design which greatly improve the electromagnetic noise.
By using bonded epoxy, the motor can be used in very harsh circumstances with severe vibration such as ambulance ventilator pump, suction pump and etc. In medical field.
The magnets can be use NdFeB(Neodymium Ferrum Boron) or conventional ferrite materials.

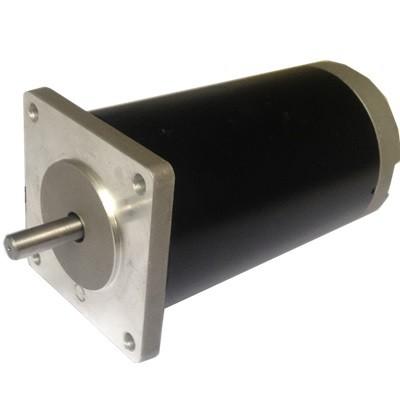

82mm OD: D82 Series 82ZYT DC Motors for Grinders, Ice Augers,Spreaders, Saw, Automatic Doors,Actuators
Features:
Low Noise, Long lifespan, Cost less and Save more for your
benefits.
Specification:
| Voltage Range: | 12VDC~220VDC |
| Power Power | 50W~300W |
| Number of Poles | 2/4 |
| Optional Motor Frame Diameter | 78mm, 80mm, 82mm and 83mm diameter |
| Optional shaft material | SS303, SS304, #45 Steel, Cr 40 |
| Frame diameter | 78mm, 80mm, 82mm |
| Insulation Grade | Class F |
| Rated Speed | 3000RPM~9000RPM |
| Optional housing surface treatment | Powder Coating, Electro phoresis surface treatment. |
| Magnet material | Hard Ferrit or rare earth |
| Armature Design | Skewed Slots Rotor Design for smooth running and low electro noise |
Typical Application:
Gearmotor, linear actuator,power tool, spreader,auger,automations
and so on.
Drawing:
Typical Specification:
| Model | D78/D80/D82/D83 | |||
| Rated voltage | V dc | 12 | 24 | 48 |
| Rated speed | rpm | 2580 | 2580 | 2580 |
| Rated torque | N.m | 1 | 1 | 1 |
| Current | A | 32 | 16 | 9.5 |
| Starting torque | N.m | 5.9 | 5.9 | 5.9 |
| Starting current | A | 175 | 82 | 46 |
| No load speed | rpm | 3100 | 3100 | 3100 |
| No load current | A | 3 | 2.5 | 2 |
| Demag current | A | 250 | 160 | 90 |
| Rotor inertia | Gcm2 | 3000 | 3000 | 3000 |
| Weight of motor | kg | 2.5 | 2.5 | 2.5 |
| Motor length | mm | 140 | 140 | 140 |
Certificate:
Package:
Q1: What is our factory product range?
A: Stepper Motor, Brushless Motor, Servo Motor and AC Motor.etc
Q2: Can I get some samples?
A:We are honored to offer you samples for quality check.
Q3: Do you have the products in stock?
A:Our products are manufactured according to your order except the
normal products.
Q4: What's the delivery time?
A:It usually takes about 14 working days,but the exact delivery
time might be different for different order or at different time.
Q5: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to
quality control from the beginning to the end of the production.
Every product will be fully assembled and carefully tested before
packed.
Q6: What's your warranty terms?
A: We offer different warranty terms for different products. Please
contact with us for details.
Q7:What information do you need if we need a recommendation on motor?
We need to know the basic specification of the motor:Dimesnion,
Application, Voltage, Speed and Torque. If you have samples or
drawing , it would be better you send us.In order to better provide
you with the products you need.
