Clean Surface AC Synchronous Motor PSC Electric Motor Replacing Fasco Fans
It is particularly developed for future energy saving blowers and fans used in North American and European markets.
Product introduction
3.3 inch EC motors are designed with two versions:
(1) 16 speeds version implemented by dip-switch OEM factories can adjust them in house.
(2) Constant airflow version which OEM factories can adjust the motor via AirVent software in Android or Windows.
Typical Application:
Blowers, Fans, Ventilation Facilities
Key Features:
- Perfect drop-in replacement of 3.3” PSC motors
- Controller embedded connecting to power source 120VAC/230VAC
directly.
- Built by UL standards and now under UL certification procedures.
- Power range 20W~Max. 200W.
- Efficiency over 80%, MORE energy saving.
Typical Specification:
| Voltage | 115VAC/230VAC |
| Output Power | 15~100 watts |
| Duty | S1, |
| Speed Range | up to 3,000 rpm |
| Operational Temperature | -20°C to +40°C |
| Insulation Grade | Class B, Class F, |
| Bearing Type | sleeve bearings, ball bearings optional. |
| Optional shaft material | #45 Steel, Stainless Steel, |
| Housing Type | Air Ventilated, Plastic Housing |
| Rotor feature | Inner rotor brushless motor |
| Certification | UL, CSA, ETL,CE |
Drawing :

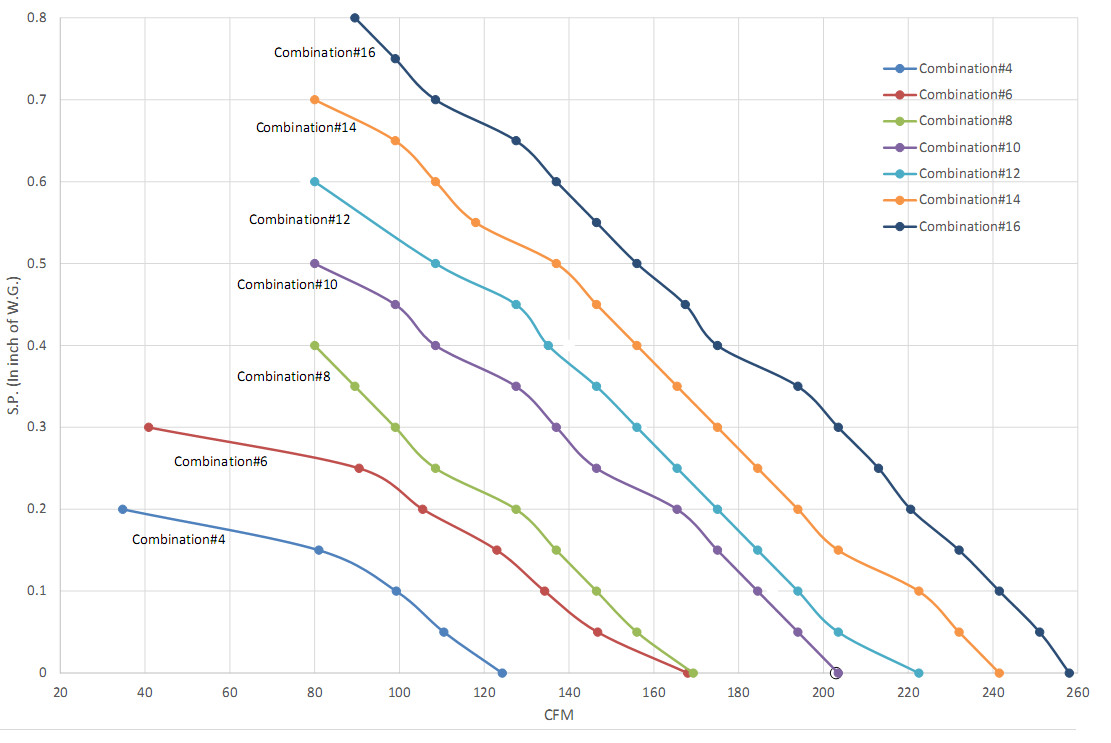

Typical Performance:
|
|
