UL Certificated DC Linear Actuator Min Stroke Length 50mm GF44 Series
Actuator is the key component of active vibration control and an important part of active control system. Actuator, also known as exciter, is used for dynamic test and is the output device of dynamic test.
Typical Application:
Dental Chair, Patience Beds, Medical Equipments, Lifting Chairs, Automatic Furniture, Fitness Equipments.
Features:
1. Tube: Aluminum
2. Limit switches: Built-in (Factory Preset)
3. Optional Stroke Length
4. Double Protection Devices
5. ACME Screw
6. Mounting:
(a) Inner tube cannot be turned freely.
(b) Rear clevis can be turned 90° only.
7. Stroke length:
(a) Min. 50mm
(b) Max. can be customized
8. Lower noise
Typical Specification:
| 1.Input Power: | (a) 12VDC/24VDC |
| (b)110VDC/220VDC | |
| 2. Speed (No Load): | (a) One-start Screw: 3~5 mm/s |
| (b) Two-start Screw: 8~12 mm/s | |
| 3. Load Capacity: | |
| (1). One-start Screw | (a). Push: 600kgs(1300lbs) Max. |
| (b). Pull: 400kg(880lbs) Max. | |
| (2) Two-start Screw | (a). Push: 300kgs(660lbs) Max. |
| (b). Pull: 200kg(440lbs) Max. | |
| 4. Reduction Ratio: | 32:1 |
| 5. Duty Cycle: | 10% (1 ON 9 OFF) |
| 6. IP: | 52 |

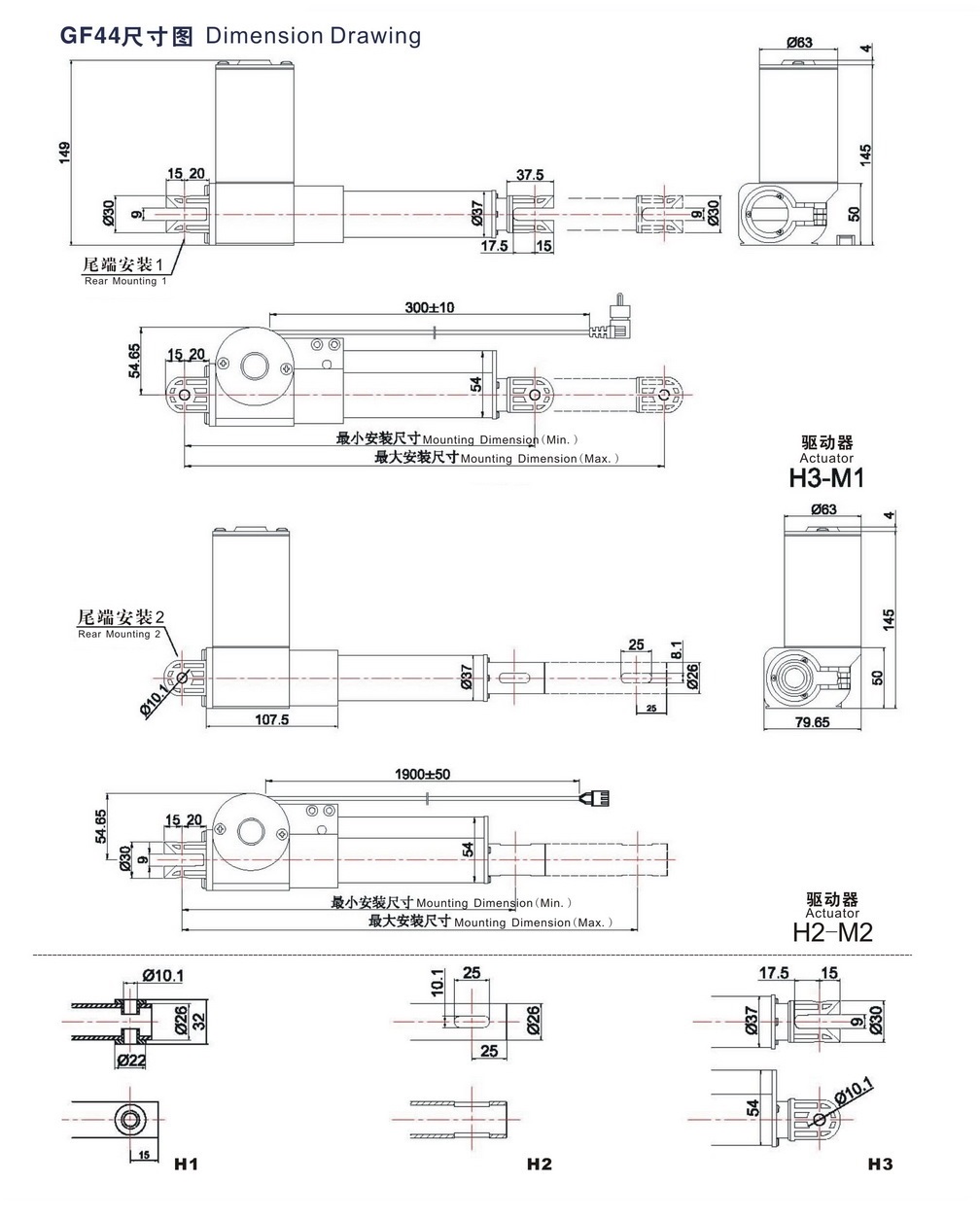

Drawing:
|
|
